SPECIFICATIONS

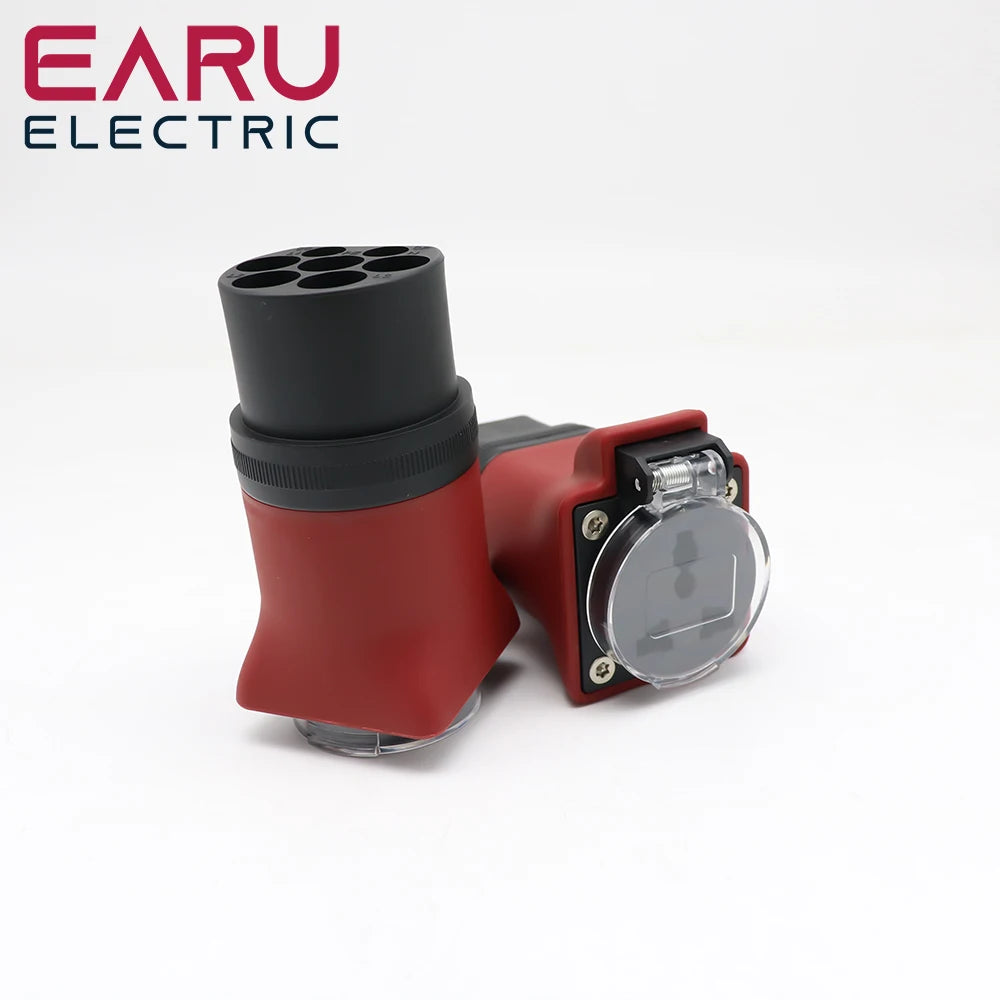

Name: Portable 220V Type 2 Male Plug to Schuko Socket EV Charging Adapter For EV Charger EV Connector
Brand: WattVolts
SKU: 14:173#UK Plug;200007763:201336100
Price: 30.0 GBP
Availability: InStock

Brand Name: EARU

Hign-concerned Chemical: None

Voltage: 110V AC -220V AC

Origin: Mainland China

Current: 16A

IP Rating: IP44

Grounding: Standard Grounding

Mechanical Life: no-load plug in / plug out > 10000 times

Insulation Resistance: >1000MΩ (DC500V)

Standard: IEC 62196-2 / EU Wall Socket

Application: Convert Type 2 plug to EU Socket

Choice: yes

semi_Choice: yes

Input & Output
Input voltage/Output voltage	100~250V AC Single Phase	Max. output current	16A
Input frequency	47~63Hz	Charging interface type	IEC 62196-2 To EU Wall Socket
Max. output power	3.7KW
Specification
Operating temperature	-30℃~+50℃	Case Material :	Thermoplastic, UL94 V-0
Contact Pins	Copper Alloy, Silver Plating	Withstand Voltage	2000V
No-load plug in / pull out	＞10000 times	Coupled insertion force	＞45N＜80N
Socket Type	Type 2 female to EU	Plug material	ABS

About this item

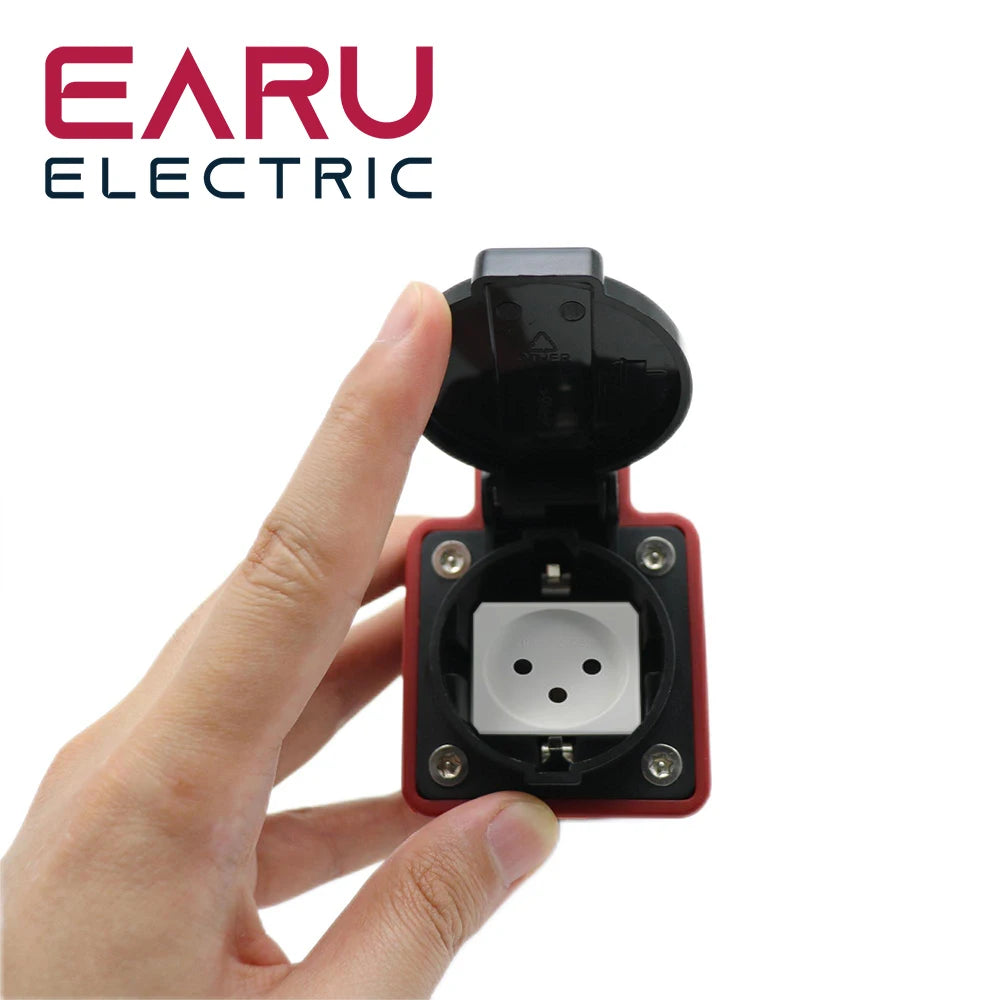

1. This adapter converts Type 2 charging station socket to standard European Socket (Schuko).

2. This adapter cannot send “car connected” and “ready to charge” signals to the charging station. If the charging station requires such signals, you may not be able to draw power from the station.

3. Some stations require stop signals to begin unlock procedure. You may need to cut power manually and un-plug the adapter at the same time to avoid being locked by station.

4. CE, certified and compliant.
