Junsun EV Charger advantage

1,Easy carrying and storage when going out
2,Grip luminous design for convenient viewing of gun head position at night
3,Strong compatibility, eliminating situations where it cannot be used
4,Fast charging, supports up to 7KW power supply
5,3-year warranty, buy with confidence

Product details

Input power supply: 195V-240V
Charging current: 6/8/10A/13A/16A/20A/24A/32A adjustable. (Use the same current to charge your car next time.)
Output power: 0-7KW
Protection level: IP65 (in working condition)
Mechanical lifespan: Insertion and removal>10000 times
Contact socket: copper alloy, silver plated
Number of phases: single-phase/three-phase
Working temperature: -30 ℃~+55 ℃

Control Box Features

Leakage protection
Overvoltage or undervoltage protection
overload protection
Lightning protection
Overheat protection
Variable current: 6A/8A/10A/13A/16A/20A/24A/32A

FAQ:

Q1: Does the charger remember the last charging current value?
A1: Yes, it will record the current of the last charge
Q2: Can I set a timer?

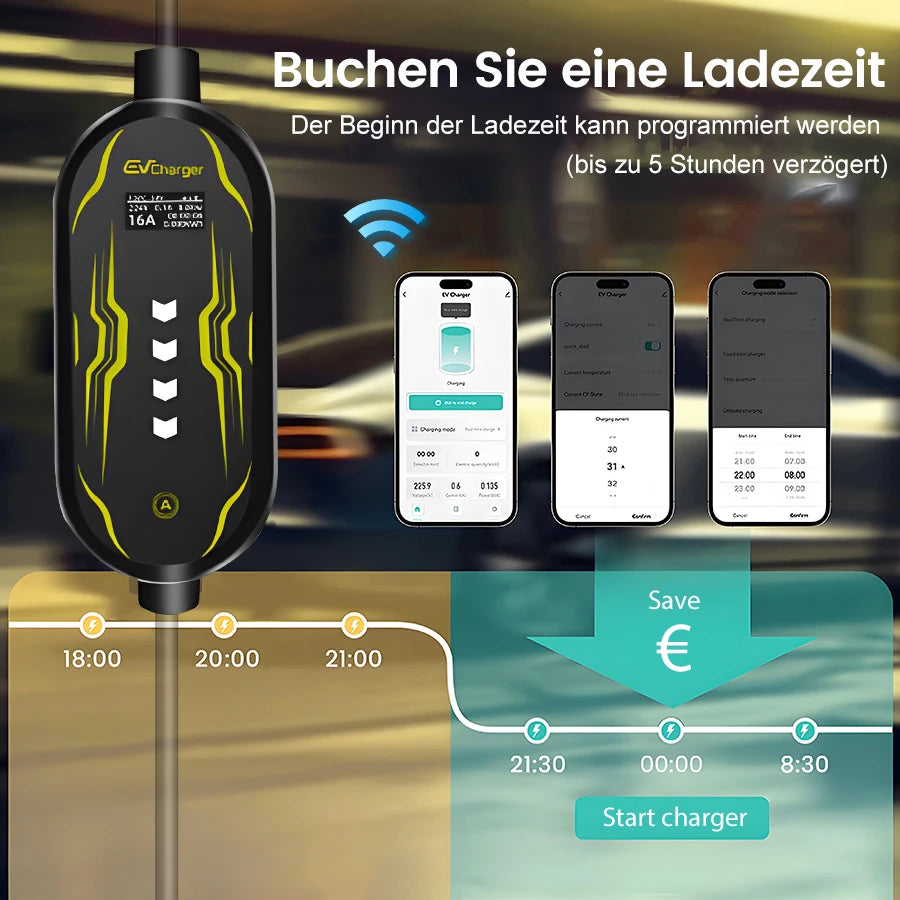

A2: No, but the device can be scheduled for charging, with a maximum time of 5 hours
Q3: How many meters is the product
A3: The products are available in 4 meters, 5 meters, 8 meters, and 10 meters, and customization is also acceptable
Q4: Can it be grounded?
A4: Yes
Q5: Is the box waterproof?
A5: The waterproof level of the control box is IP65
Q6: Hello, what is the diameter of the plug?

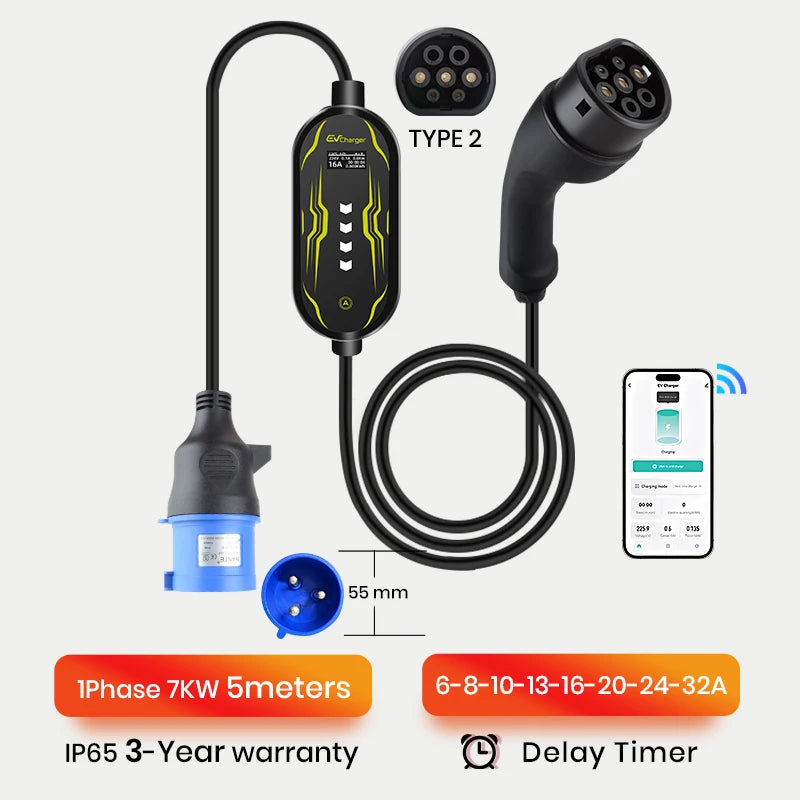

A6: A 3.5KW household socket is sufficient. The 7KW blue connector is 55mm, the 11KW red connector is 55mm, and the 22KW red connector is 63mm
Q7: Is there a 6mA DC leakage protection?
A7: 3.5kw and 7KW are AC 30mA protection, while 11KW and 22KW are AC 30mA+6mA DC leakage protection
Q8: Is my car model suitable

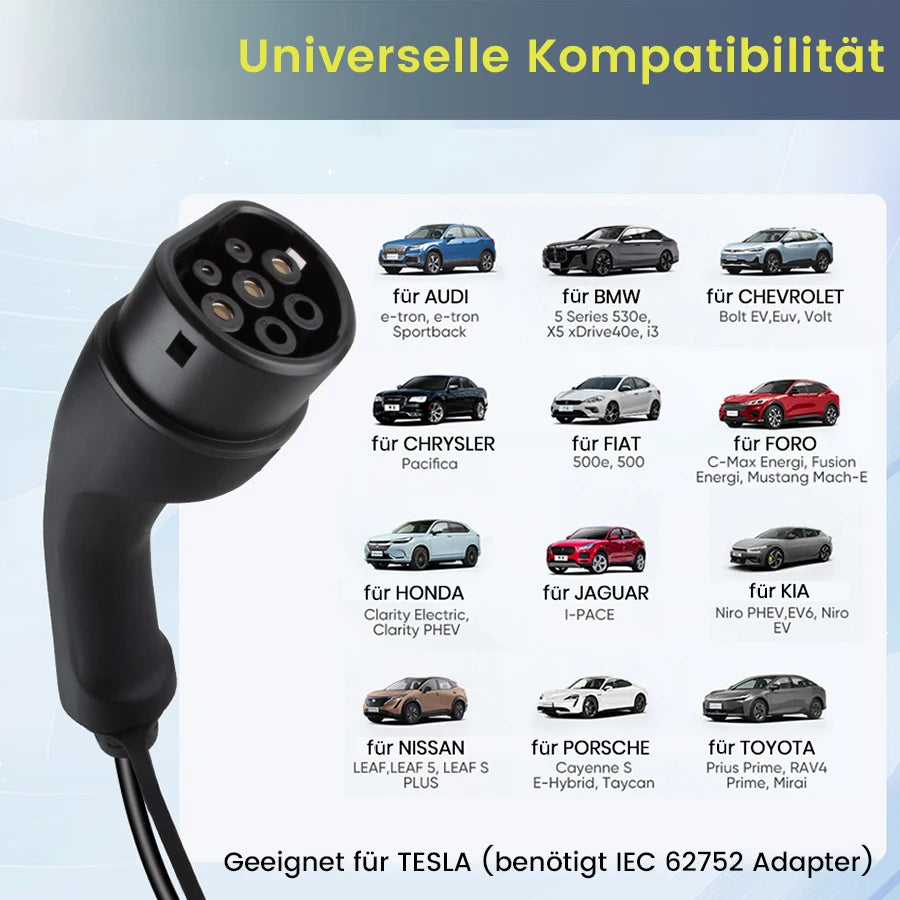

A8: This product is suitable for all Type2 interface models
Q9: Why is the maximum charging power of the 11KW I purchased only about 3.5KW
A9: Due to the model not supporting 3Phase power supply, the product automatically reduces the power to 3.5KW to protect the car
Q10: What certificates does the product have
