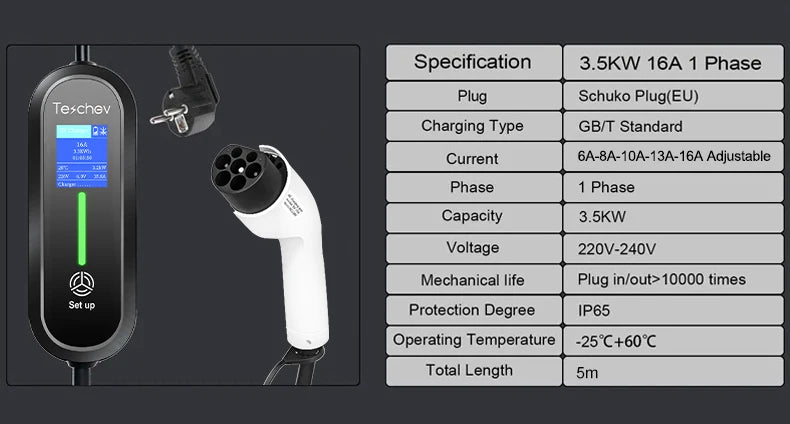

SPECIFICATIONS

Brand Name: Teschev

Hign-concerned Chemical: None

Charger Type: Portable Charger

length: 5 meters

Origin: Mainland China

Current: 8A/10A/13A/16A Adjustable

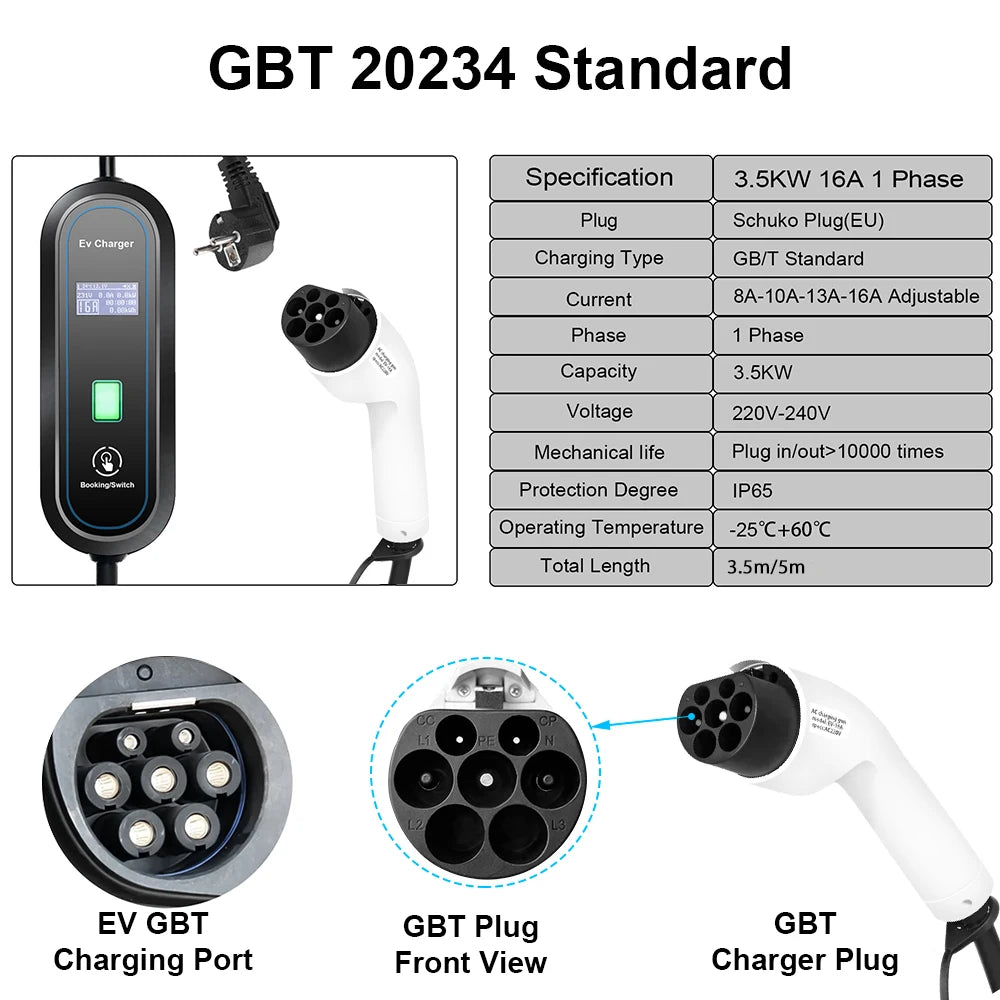

Manufacturer Part Number: GBT 20234

weight: 2.2kg

Operating Temperature: -25℃ to +55℃

Power: 3.5kW

IP Rating: IP65

Voltage: 110-250V AC

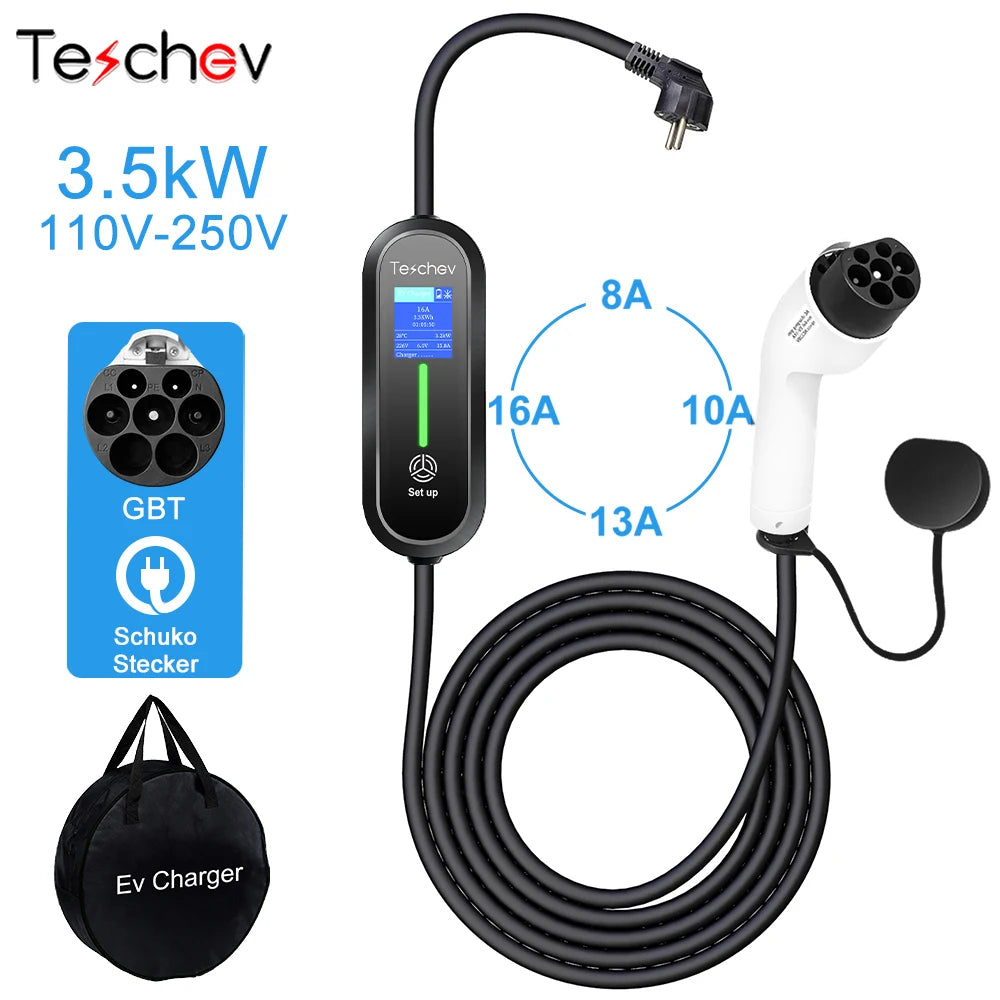

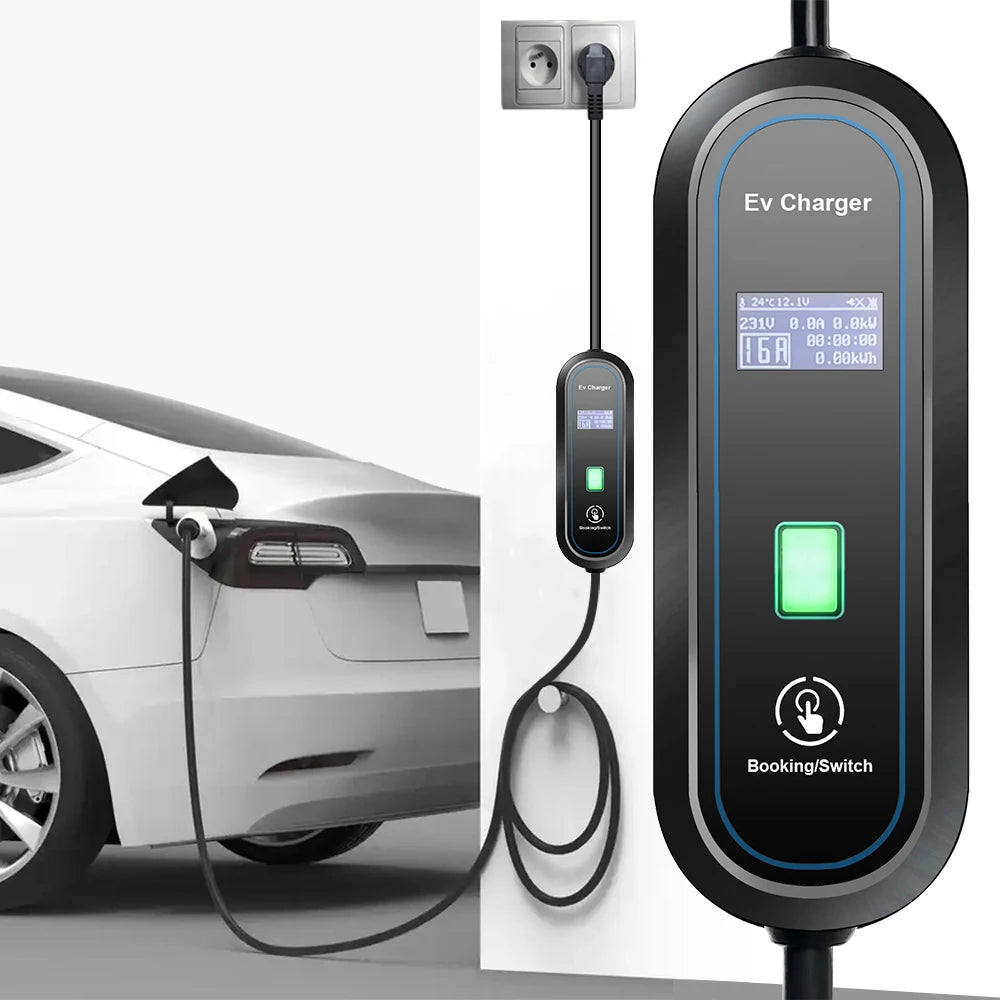

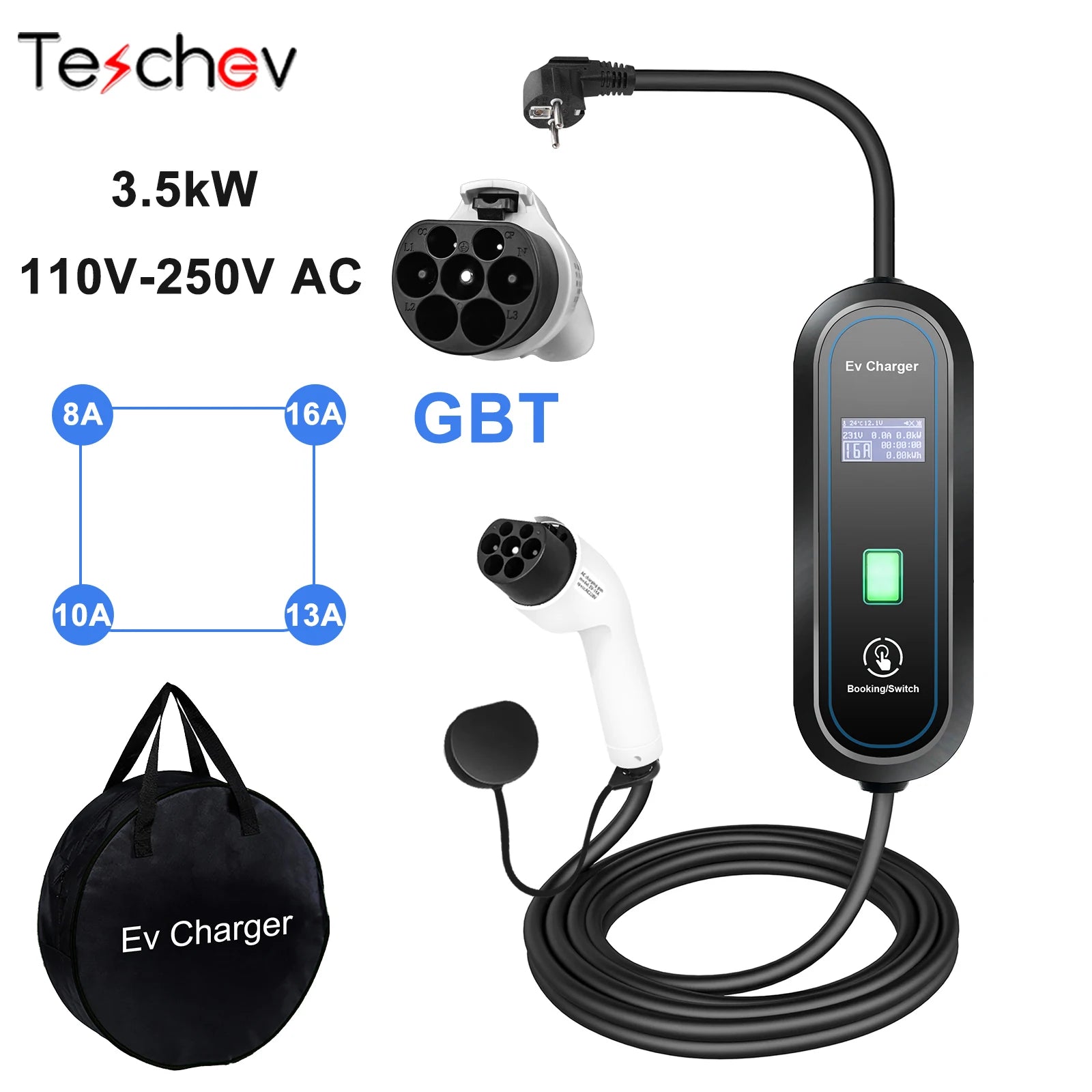

1. 8A/10A/13A/16 A, 110-250V AC, 3.5KW, mode 2 GBT Home Indoor/Outdoor Portable EV Charger

2. Easy to use, do not need an APP to run it or home network connection.

3. The station uses plastic and ABS material to be stronger. Button start mode and easy installation.

4. LCD to display all the car's data on the charging station during charging. You can see the state of charge, including current, voltage  charging time, power and temperature. The screws are fit into the box so you don't have to worry about the screen falling.

5. The 5m cable leaves enough space between your car and the charging station.

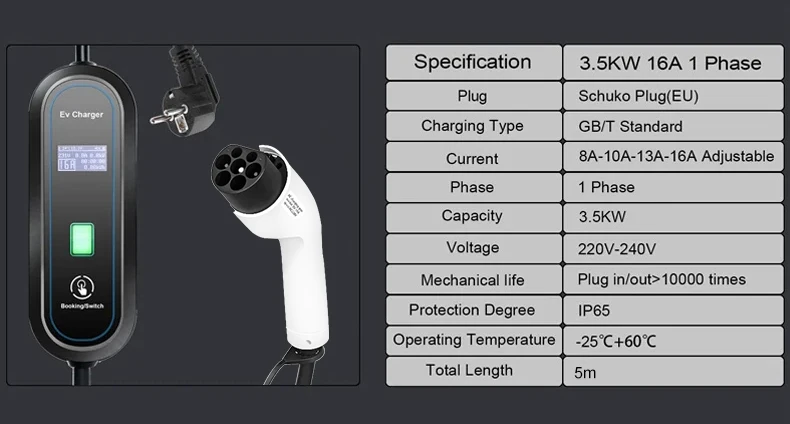

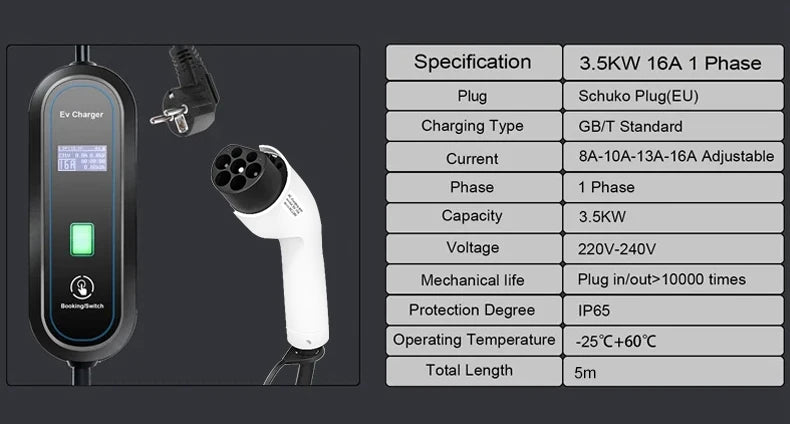

Main Features:

Phases: single phase

Output Power: 3.5kW

Power pins: 3 pcs(L1, N, PE)

Input Power: 110V-250V AC

ChargingCurrent: 8/10A/13A/16A adjustable

Signal pins: 2 pcs (CP, PD)

Signal current: 2A

Signal voltage: 30V AC

IP Rating: IP65

Operating tempeature: -25℃ to +55℃

Length: 5 meters or 3.5 meters

Weight: 2kg

Mechanical life: plug in/out > 10000 times

Impact of external force: can afford 2m drop and 2t vehicle run over pressure

Insulation resistance: > 1000MD (DC500V)

Terminal temperature rise: < 50K

Housing Fire Rating：UL94V-0

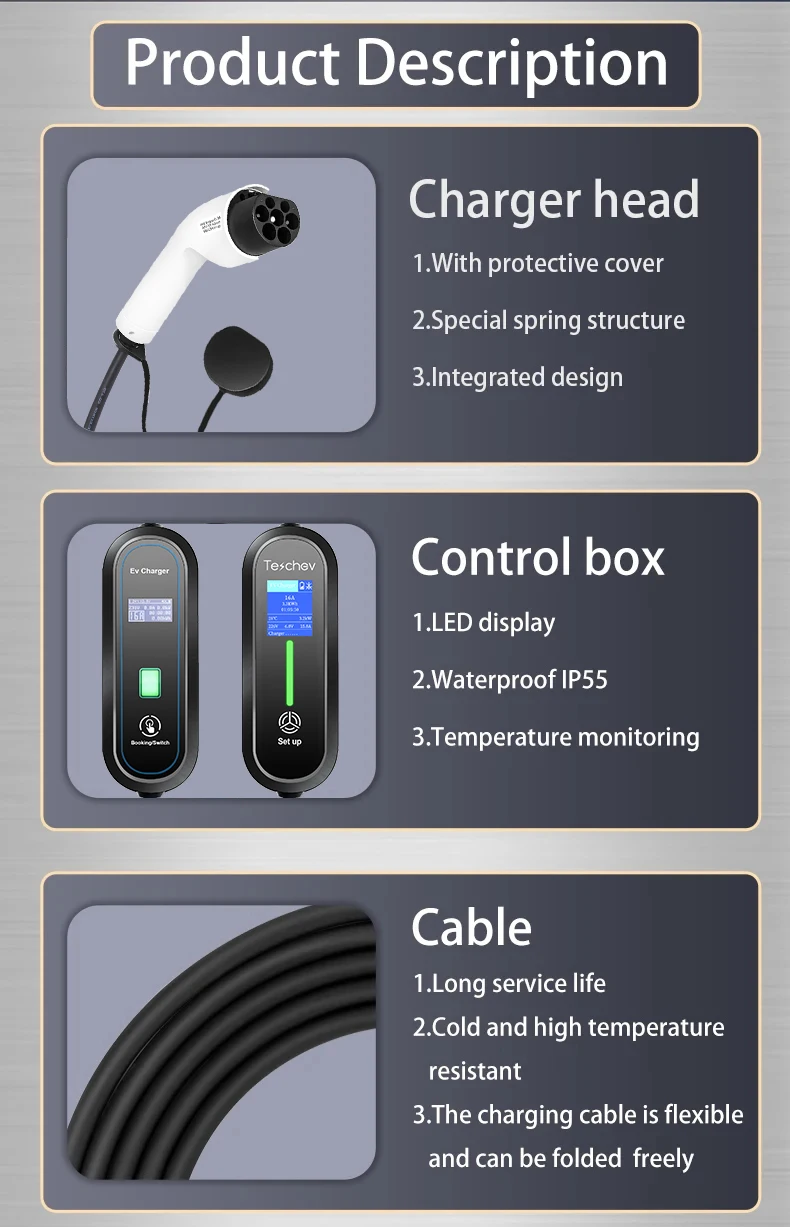

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

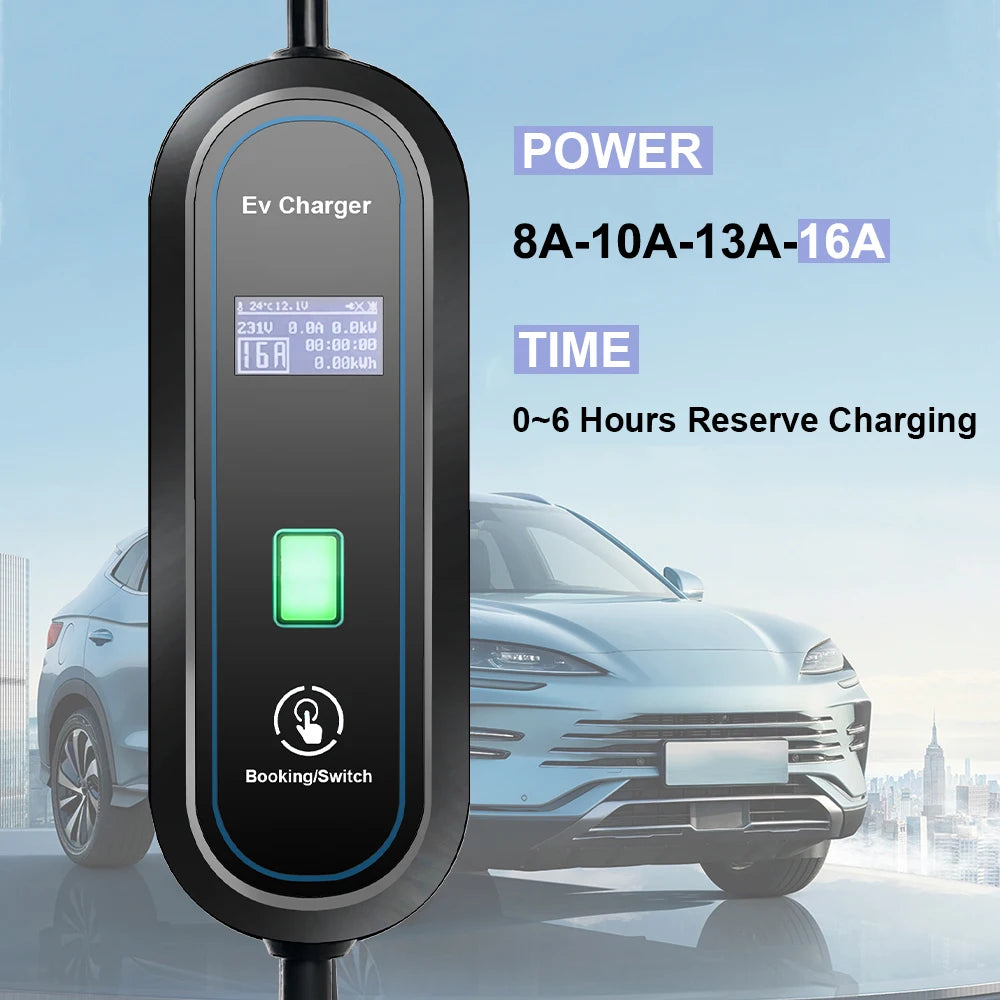

6. Change current: 8A/10A/13A/16A

7.Timer Function: 1~10 Hours Delay Charging

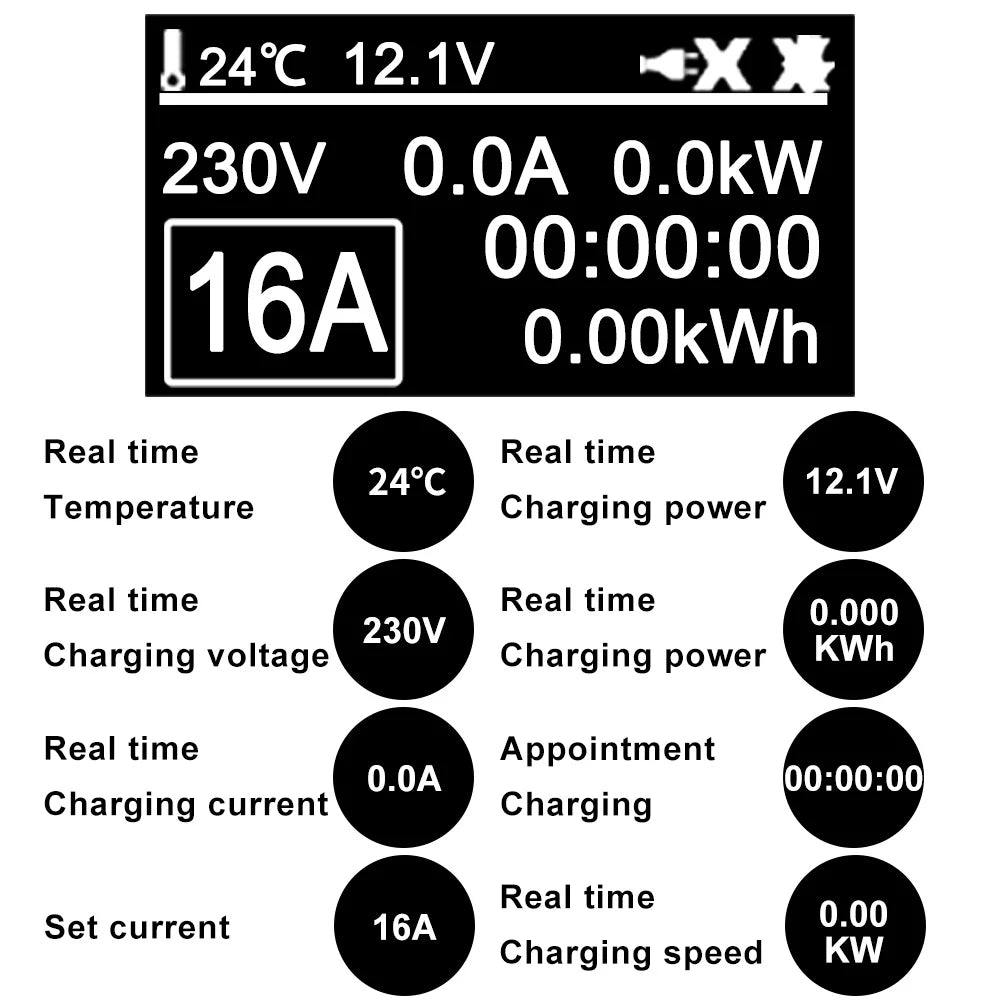

LED Display:

1. Charging Temperature

2. Charging Status

3. Set Current

4. Energy Charged in KW/h

5. Charged time

6. Charging Voltage

7. Charging Current

8. Charging Power
